| Brand Name: | JOY |
| Minimum Order Quantity: | 1*20'GP |
|---|---|
| Packaging Details: | pallet |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Panel Thickness: | 100mm/150mm | Panel Size: | Custom |
|---|---|---|---|
| Application: | Cold Storage Room Cooler Freezer | Material: | Embossed Alu Sheet, Color Bond Steel, Stainelss Steel Sheet |
| High Light: | 150mm Walk In Freezer,100mm Walk In Freezer,75mm PU Panel |
||

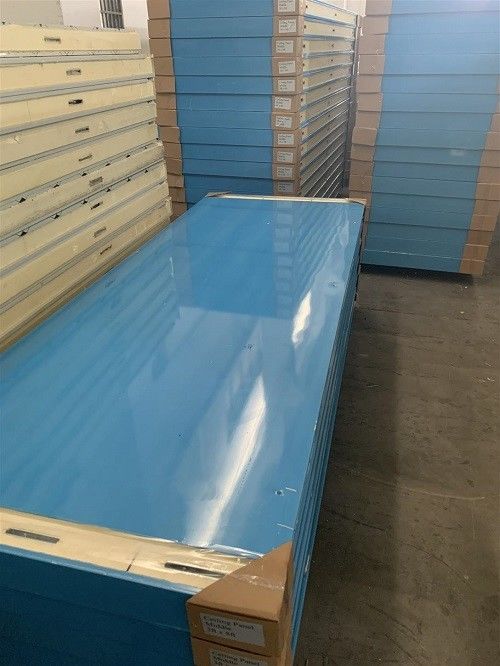

PU Panel With Cam Lock Joint for Cold Storage
PU panel is also called PU sandwich panel, insulated panels . According to different usage, PU Panel can be divided into three types: Wall panel, Roof panel, Cold Store Sandwich Panel. Widely used in industrial and commercial buildings, Cold Storages(cold room and freezer room), Clean Rooms,warehouses and prefab buildings.
PU panel with cam lock type is produced by mould , pu panel connectes by cam lock, a wide application on smalls and medium size cold room and freezer room.
Description:
Insulated PU panel is commonly used as the cold storage panels due to its good performance on mechanical, chemical, biological and moisture properties. With polyurethane foam sandwiched between the two metal sheet, polyurethane has the excellent insulation performance , We are engaged in manufacturing reliable PU sandwich panels in different specifications for cold storage.
Cold Storage Panel is universally acknowledged the best material of heat insulation and heat preservation nowadays and it can perform a good anticorrosion, antirust and anti-weathering.
Polyurethane foam plastics thermal stability is quite good, when the temperature is lower than 120℃, the volume and the intensity have no obvious change, its Thermal conductivity is small, when the density is 0.03kg/m3, the heat conductivity is only 63J(m.h.k) (15cal/m.h.k).
Cold room panels with different thickness are applied for different temperature requirements.
| Temperature range | Thickness of cold room panel |
| 0 ℃ – – 5 ℃ | 75mm thick |
| -10 ℃ – -18 ℃ | 100mm thick |
| -25 ℃ – -36 ℃ | 150mm thick |
| -36 ℃ lower | 200mm thick |
Parameters:
Available Panel Thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 175mm and 200mm
Surface of Panels: to be plating 0.4mm, 0.5mm or 0.6mm thickness pre-painted white hot galvanized steel sheet, Embossed Aluminum Stucco Steel Sheet or 304 stainless steel sheet.
Panel Available Width: 500mm – 1200mm
Panel Available Length: 2000mm-12000mm
PU Material Origin: Germany, Japan or Korea
PU Foam Density: 40 KGS/M3
Heat Transfer Quotients: ≤0.022 W/M2*K
Pressure: ≥0.10Mpa
Cubic Area Change: ≤1% (-30 C-100 C/96h)
Fire Rating: B2
